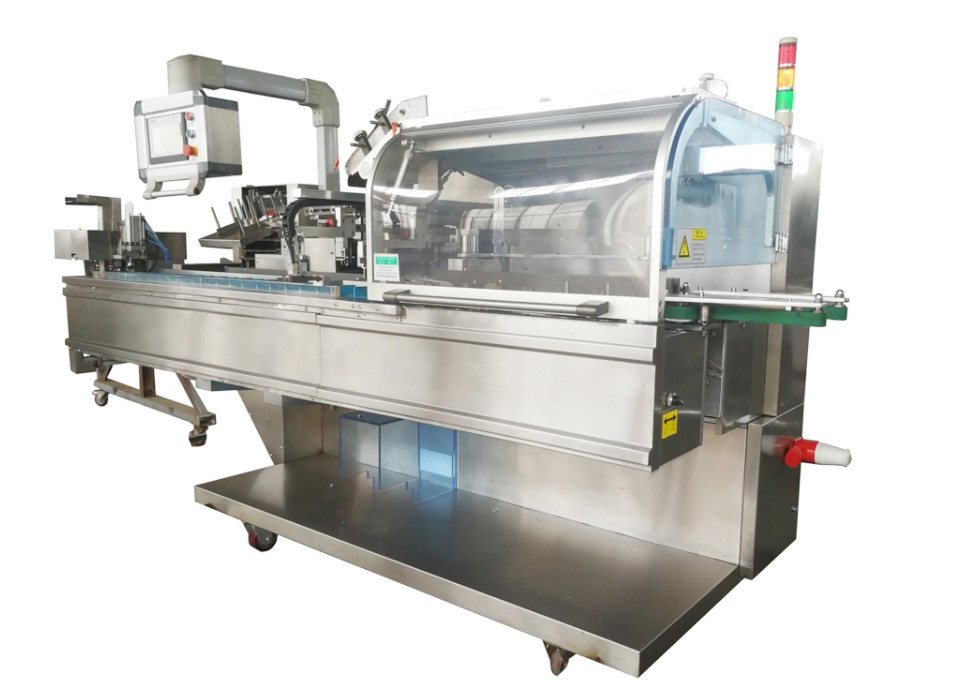

Auto cartonador de encadernação automático cosmético elétrico ZH120 da máquina

  • Electric Cosmetic Automatic Cartoning Machine Auto Cartoner ZH120
  • Electric Cosmetic Automatic Cartoning Machine Auto Cartoner ZH120
  • Electric Cosmetic Automatic Cartoning Machine Auto Cartoner ZH120
Lugar de origem China
Marca CHIC
Certificação CE ISO
Quantidade de ordem mínima 1 parte
Detalhes da embalagem A embalagem para dentro é filmes plásticos e a parte externa é caso de madeira da fumigação. Nosso c
Tempo de entrega 30 dias de trabalho
Termos de pagamento L/C, T/T, Western Union
Habilidade da fonte 20 PCes /month

Contacte-me para amostras grátis e vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Tipo Os produtos médicos cosméticos encadernam a máquina de empacotamento de encadernação Tipo conduzido Elétrico
Tensão fase de 380V 50Hz 3 Capacidade 50-100 caixas/minuto
Dimensão 3700*1350*1700 milímetro Tamanho da caixa O tamanho máximo 200*120*70mm
Destacar

Máquina ZH120 de encadernação automática

,

Máquina de encadernação automática cosmética

,

auto máquina do cartonador
Deixe um recado
Descrição de produto

Cosmetic Medical Products Carton Cartoning Packaging Machine



Application:



This product is the new model which is our company further improved on the basis of advanced technologies at home and abroad. The machine is the high-tech products which integrates electricity, gas, light.



The product is suitable for boxing the Aluminum-Plastic blister card, medicine bottle, cosmetic, poker, electronic and daily.



The machine can finish automatically all jobs such as manual folding, paper box opening, the stuff boxing, batch number printing, box sealing and so on. It can be used alone, or be linked with the other device.





Specifications :





Model ZH120
Production capacity 50-100 b/min
Packing material

the max. size 200×120×70mm

the min. size 50×25×12mm
Box quality

250-300 g/m2

According to its dimensions to confirm
Operation manual max .size 260×180mm
min. size 110×100mm
paper weight 55-65g
Volume of consumption 20 M3/h(pressure 0.5-0.7MPa)
Total power 1.5KW
Packing material The max. size 200×120×70mm
Electric power 380V 50HZ
Overall dimension 3700×1350×1700mm
weight 1800



Feature:



1,Adopt PLC automatic control system, frequency conversion. The electrical components adopt international famous brands.
2,Photoelectric system monitors all parts moving. If there is malfunction during the running, the wrong place will be shown and the machine can stop automatically.
3,Reject automatically the box which is lack of stuff or specification.
4,If the stuff or specification lack, the paper box will stop feeding.
5,Performance is stable. The operation is easy and convenience.
6,The machine can feed and box continually, the machine can instead of 15-20 the workload of workers.



machine accessory list:



No. Name Brand Made in
1 The main body Stainless steel China
2 electric elements Schneider / OMRON french/japan
3 pneumatic AIRTAC Joint venture
4 Bearing Luoyang China
5 servo motor Panasonic JAPAN
6 PLC Siemens German
7 Touch screen Siemens German
8 Driver Starlight transmission China

Samples:

Auto cartonador de encadernação automático cosmético elétrico ZH120 da máquina 0

Pre-Sale Service:



We will according your product feature, weight of each bag, and shape of bag make a quotation for your. Then more details we need communication sunch as material and thickness of film, dimension of bag you already have it or need we design for you, Operate language,what kind of voltage at the local.



After-Sale Service:



Warranty: 1 Year excep wearing parts ( Cutter, Belt, Horizontal and vertical Heating Tube etc)Most of components are free-replacement (PLC,Servo controller,Servo motor,Touch screen,cylinder) . Machine delivery will with a tool box, there have some parts is free.



Operation training: 1:Machine is very easy operate, delivery with manual, offer lot of photo and video when machine in assembling or disassembling. 2: Welcome to our factory learning. 3: Engineers available to service machinery overseas.

Kindly reminder:

Please let us know the follow packing details when you offer,so that we can check if this model is suitable for your case.Thank you in advance.

1. Product details

2. Bag width,bag length

3. Bag shape

4. Packing film material

5. Machine frame
